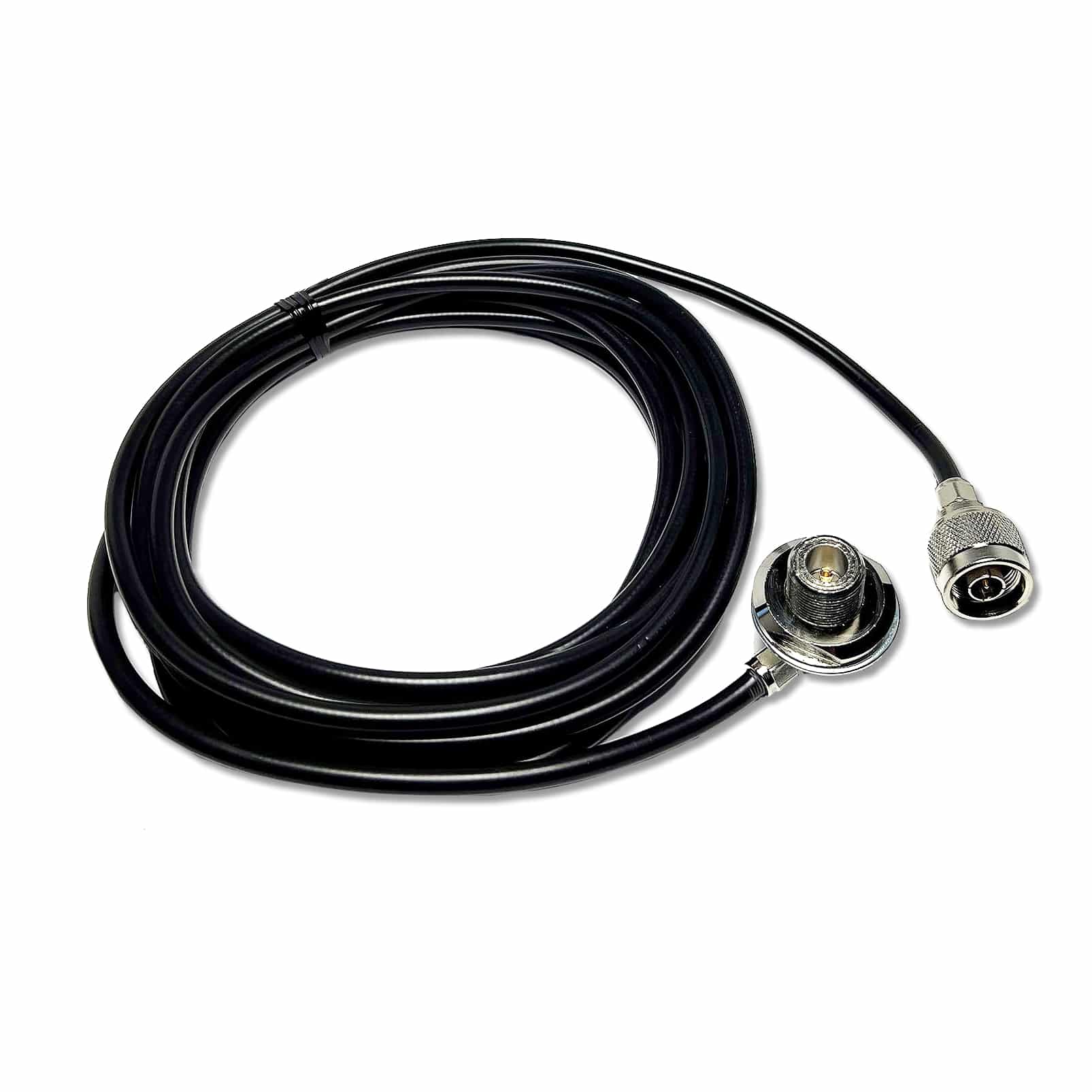

Comet – 5D4NB – 13′ Mobile Antenna Coax Assembly N-Connector-1.2-2.4gGHz

Low loss mobile mount coax cable assembly

Approximate loss: 2dB at 2400MHz

13′ very low loss coax cable assy recommended for use up to 2500MHz

Coax cable outside diameter: approx 5/16″

Gold plated N-connectors

Can be used with a lip mount or used alone as permanent hole mount. An o-ring is included to seal moisture from migrating under the threaded nut holding the connector in place, but additional water-proofing using silicone is recommended around the connector threads.

The N-male connector has a reverse threaded barrel. Turn the outer barrel clock-wise and it will thread off the connector body. The coax can then be routed through small holes or pushed through tight spaces without completely removing the connector. After routing the coax into place, screw the barrel back onto the N connector.

To shorten the over-all length of the coax and avoid excessive cable loss-

Remove the barrel as above and de-solder the center pin of the N connector

The connector body then screws apart and the cable can be cut to the desired length.

Re-assemble the connector.
