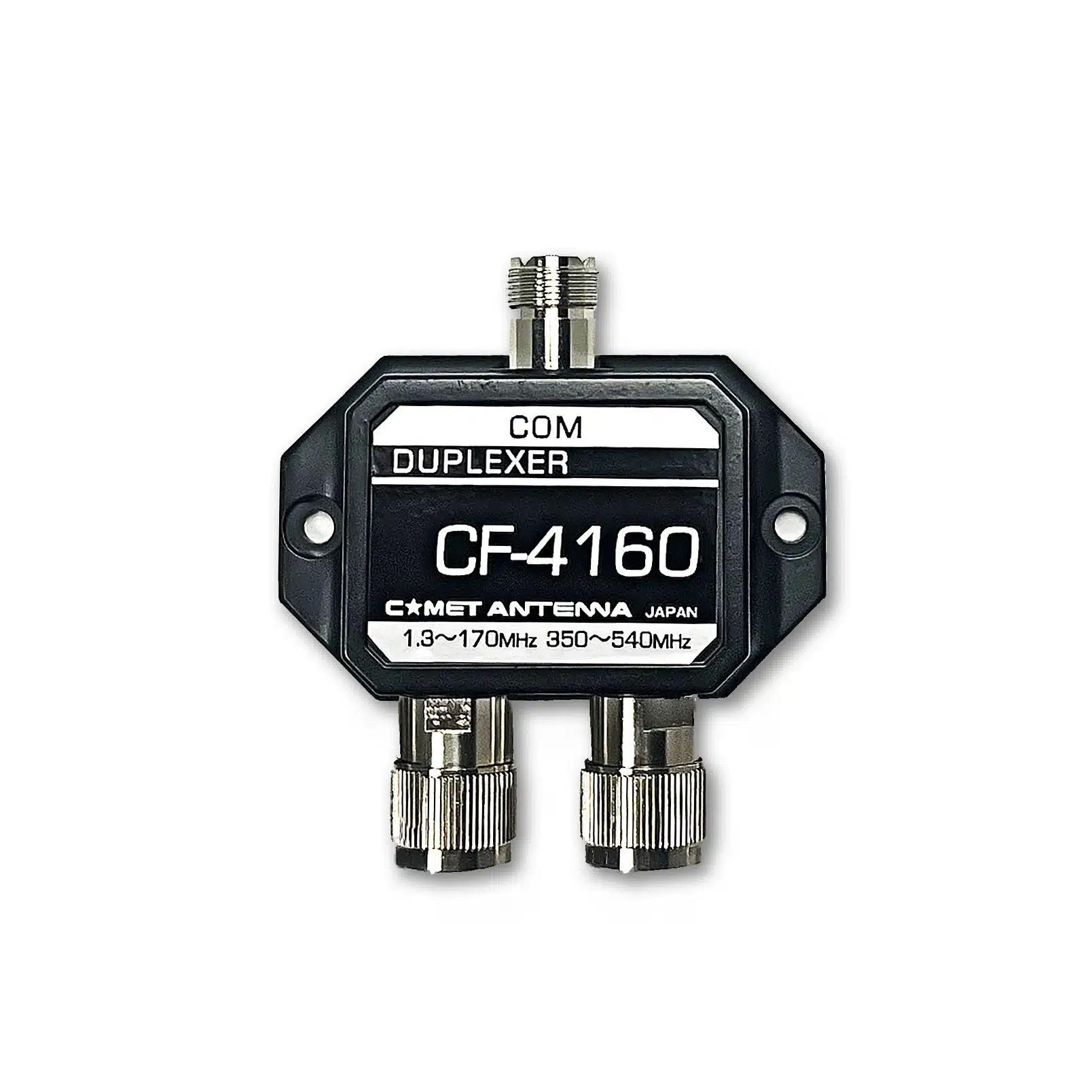

Comet – CF-4160K – 1.3-170MHz-350-540MHz Duplexer

                      Band Pass    Ins Loss     Max Power
Low Pass:    1.3-170MHz       0.1dB          800W PEP
High Pass:  350-540MHz     0.2dB         500W PEP

Isolation: 60dB minimum

CONNECTORS:

CF-4160K

Common: SO-239
Low Pass: PL-259
High Pass: PL-259

CF-4160I
Common: SO-239
Low Pass: PL-259
High Pass: N-Male

CF-4160J

All UHF-female connectors. Choose your own length jumper between your radio and the duplexer.

Common: SO-239
Low Pass: SO-239
High Pass: SO-239

CF-4160N

All N-female connectors allows low-loss N-type connectors with a jumper length of your own choosing.

Common:  N-Female
Low Pass:  N-Female
High Pass:  N-Female
