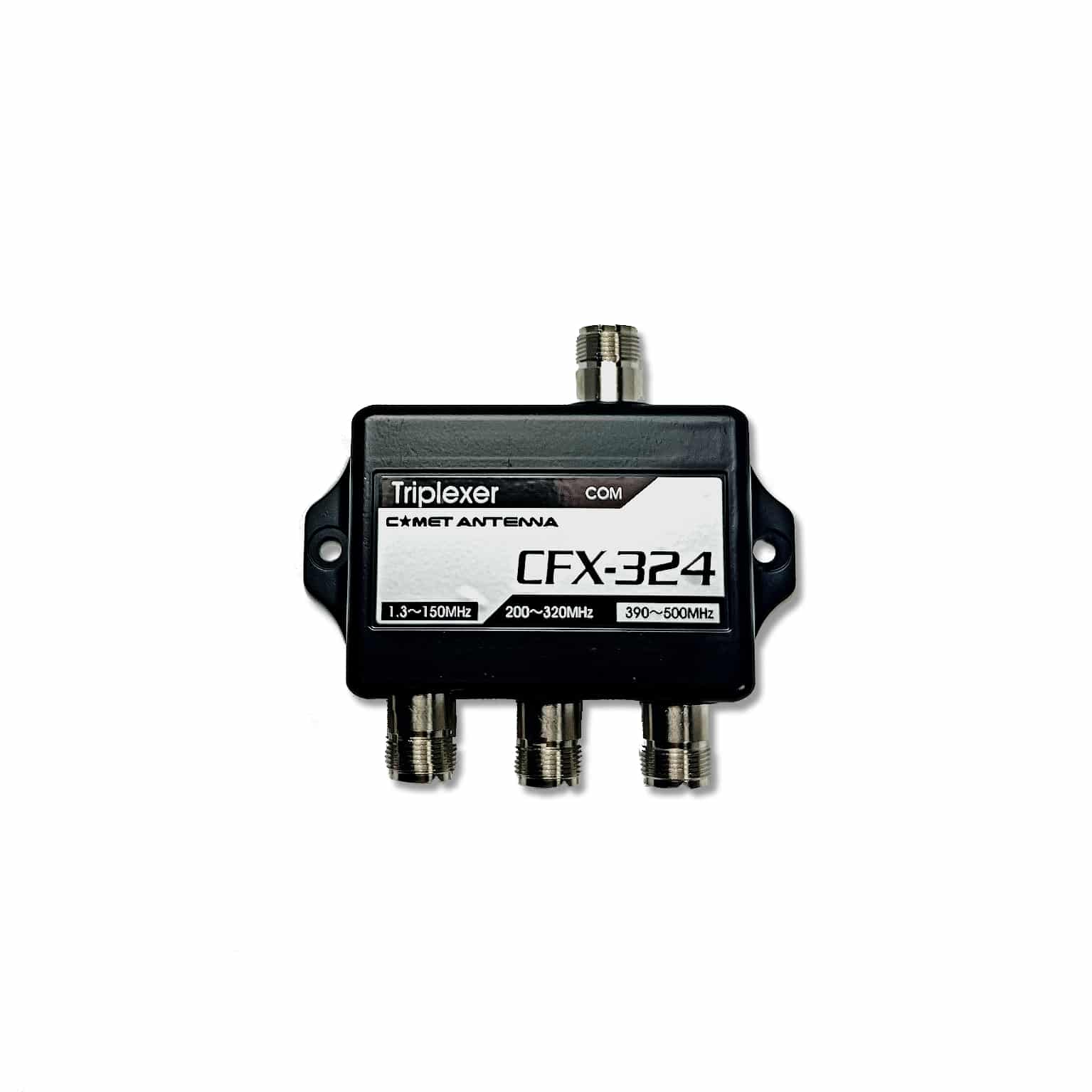

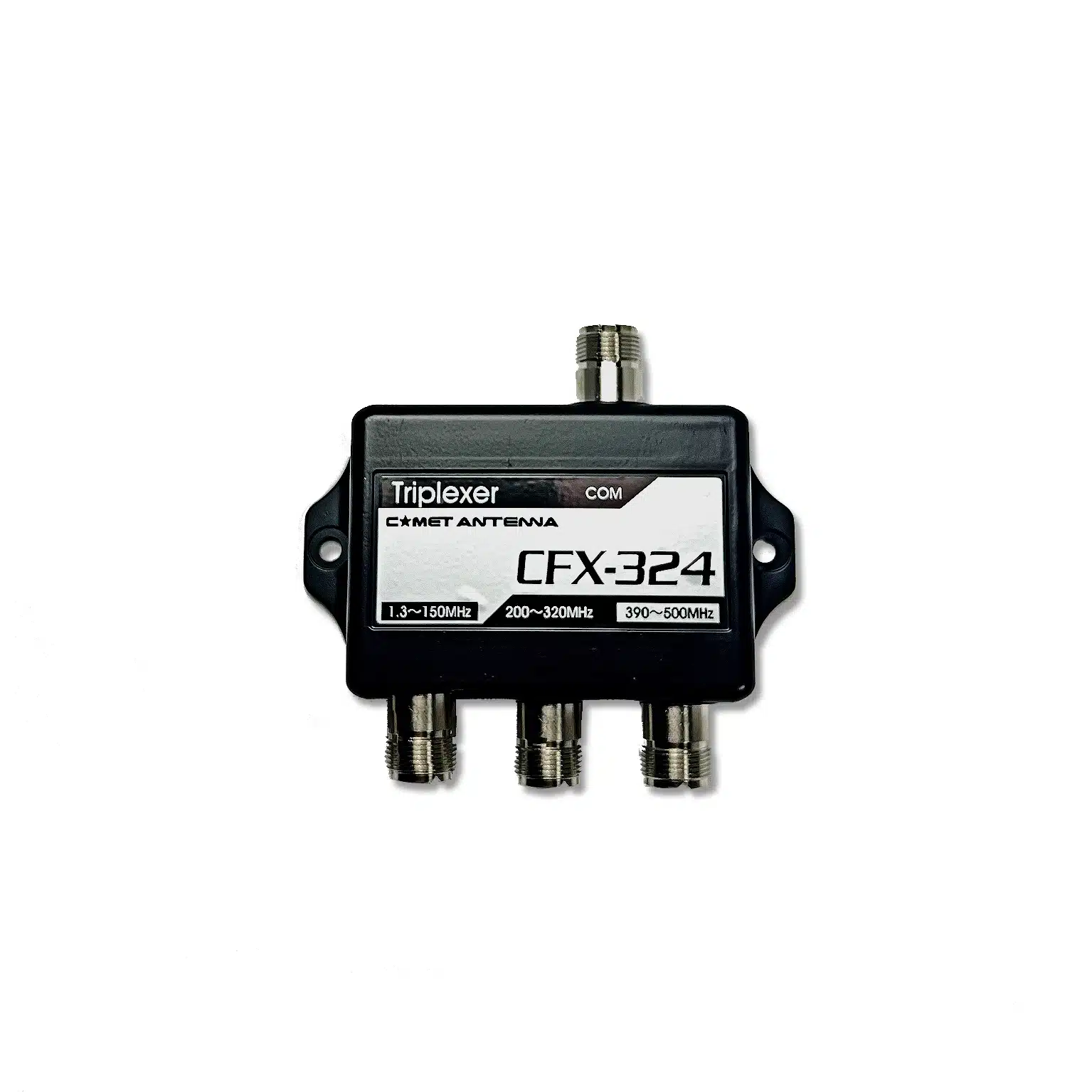

Comet – CFX-324J – 1.3-150-200-320-390-500MHz w-o Leads

2M/220/440MHz Triplexer
The connectors on the CFX-324J are all female UHF connectors (SO-239s)
Primarily used in a base station set-up to be easily located anywhere in your shack that is most convenient by adding your own jumpers between the radio(s) and the CFX-324J.

Band Pass    Ins. Loss        Max Power
1.3-150MHz        .2dB             600w PEP
200-320MHz    .25dB             600w PEP
390-500MHz     .3dB              600w PEP

Isolation: 40dB minimum

CONNECTORS:
Common: SO-239
Low Pass: SO-239
Mid Pass: SO-239
High Pass: PL-259
