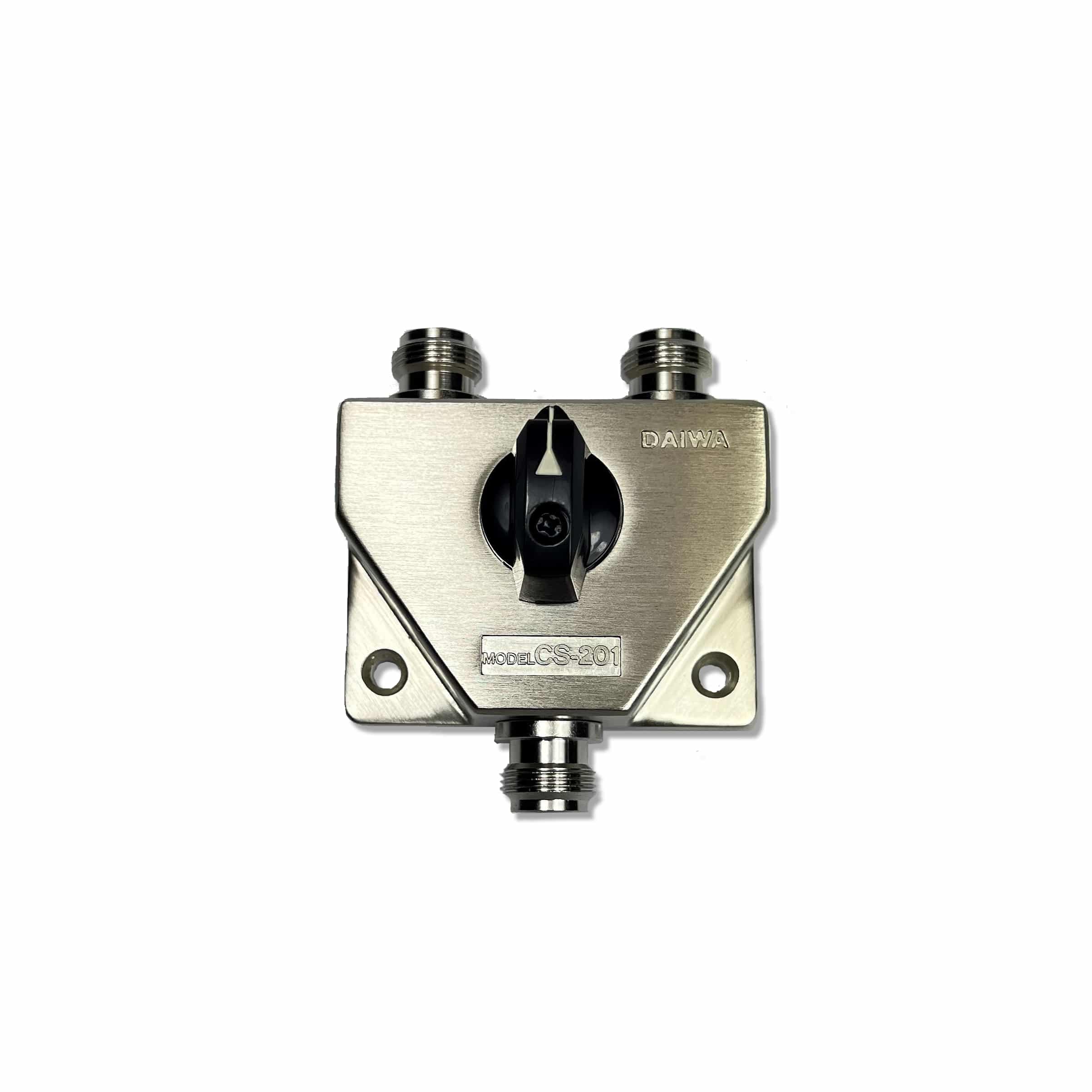

Daiwa – CS201GII – 2 Position Coax Switch – DC – 2GHz

Daiwa 2-position coax switch
Frequency Range: DC-2 GHz
Power Rating:
1.5 kW CW (up to 30 MHz)
250 W CW (up to 1 GHz)
150 W CW (up to 2 GHz)
VSWR: Less than 1.3:1 at 1.3 GHz
Insertion Loss: Less than 1.2 dB at 1.2 GHz
Isolation: 50 dB at 1 GHz
Connectors: Gold Plated N-Type female
Output Port: 2
